Hohlschrauben-, Block- und Rückschlagventile. Präzisions-Steuerkomponenten für pneumatische Systeme — in verschiedenen Bauformen, mit Kontermutter, Ringstück oder Ringsteckanschluss erhältlich. Banjo bolt, block and check valves. Precision control components for pneumatic systems — available in various designs, with locknut, ring piece or push-in connection.
| BauformDesign | Typ / SerieType / Series | Anschluss / GewindeConnection / Thread |
Eigenschaften / AnwendungProperties / Application |
|---|---|---|---|

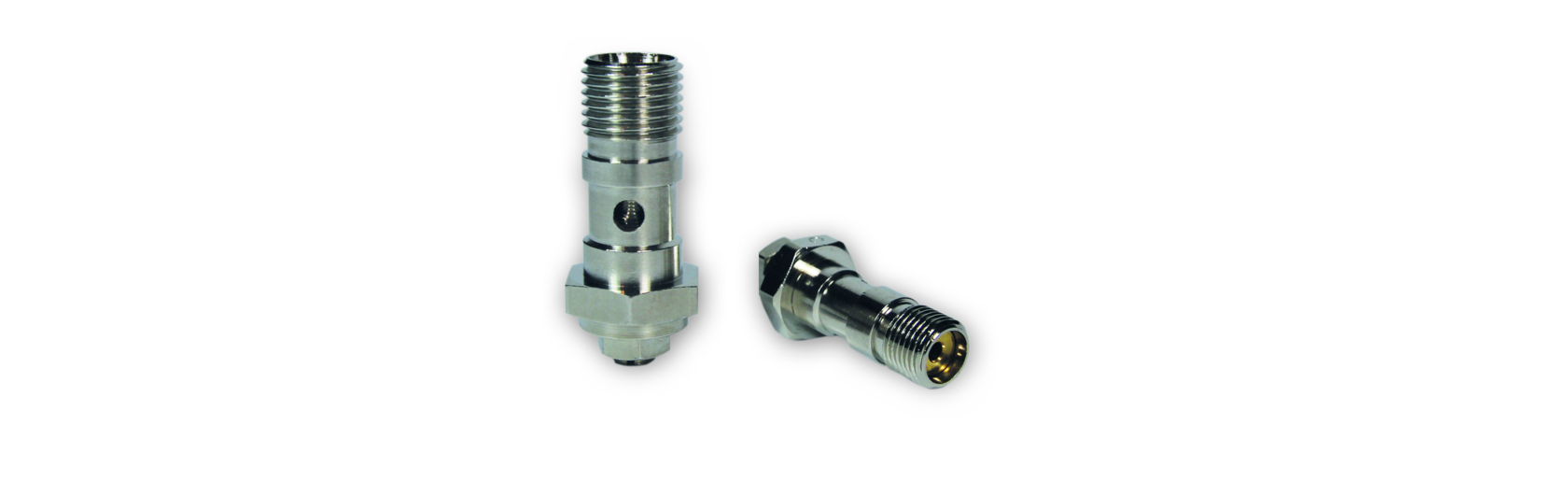

| HohlschraubenventilBanjo bolt valve | DVH, DRVH | M5 – G½" | Drossel- und Drosselrückschlagventile in Hohlschraubenbauweise. Direkt auf Zylinder oder Ventile montierbar, um 360° einstellbar. Temperaturbereich −20 °C bis +80 °C.Throttle and throttle check valves in banjo bolt design. Mountable directly on cylinders or valves, 360° adjustable. Operating range −20 °C to +80 °C. |

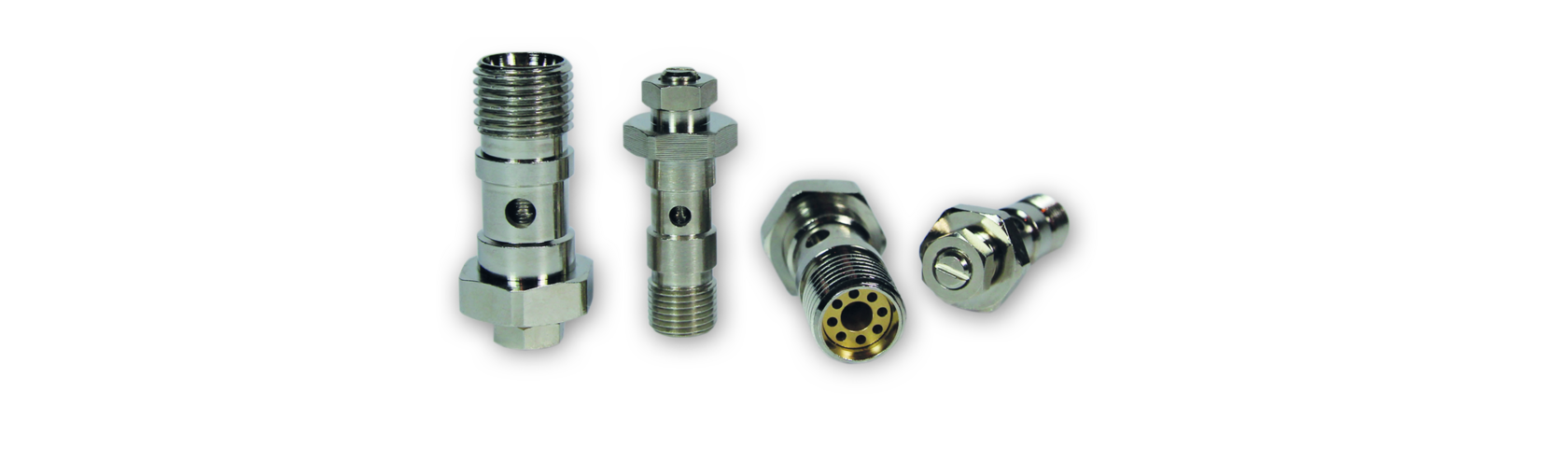

| Hohlschraubenventil mit KontermutterBanjo bolt valve with locknut | DVH-K, DVH-KR | M5 – G½" | Mit Kontermutter (SW2) zur Sicherung der Drosseleinstellung — verhindert unbeabsichtigte Verschiebung. KR-Variante zusätzlich mit Rändelkappe für werkzeuglose Justage.With locknut (SW2) securing the throttle setting — prevents unintended shift. KR variant additionally with knurled cap for tool-free adjustment. |

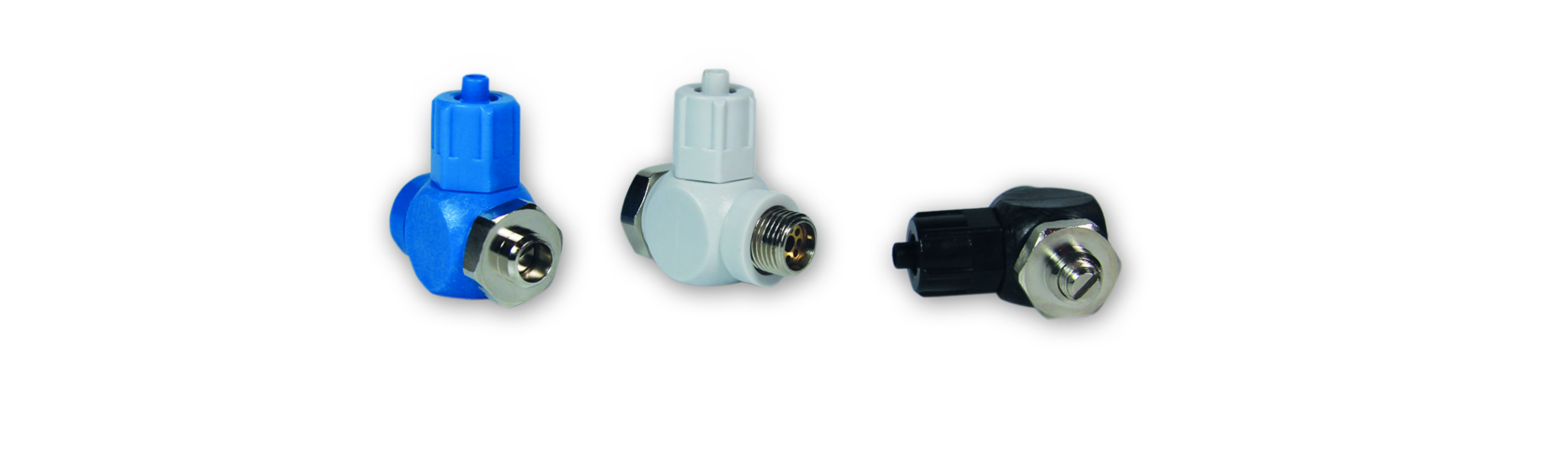

| Hohlschraubenventil mit RingstückBanjo bolt valve with ring piece | DV-R, DRV-R | G⅛" – G½" | Drossel- und Drosselrückschlagventile zum Einschrauben in bestehende Ringstück-Verschraubungen — kompakte Integration in pneumatische Schaltungen. Schlauchgrößen 6 – 12 mm.Throttle and throttle check valves for installation into existing ring piece fittings — compact integration into pneumatic circuits. Hose sizes 6 – 12 mm. |

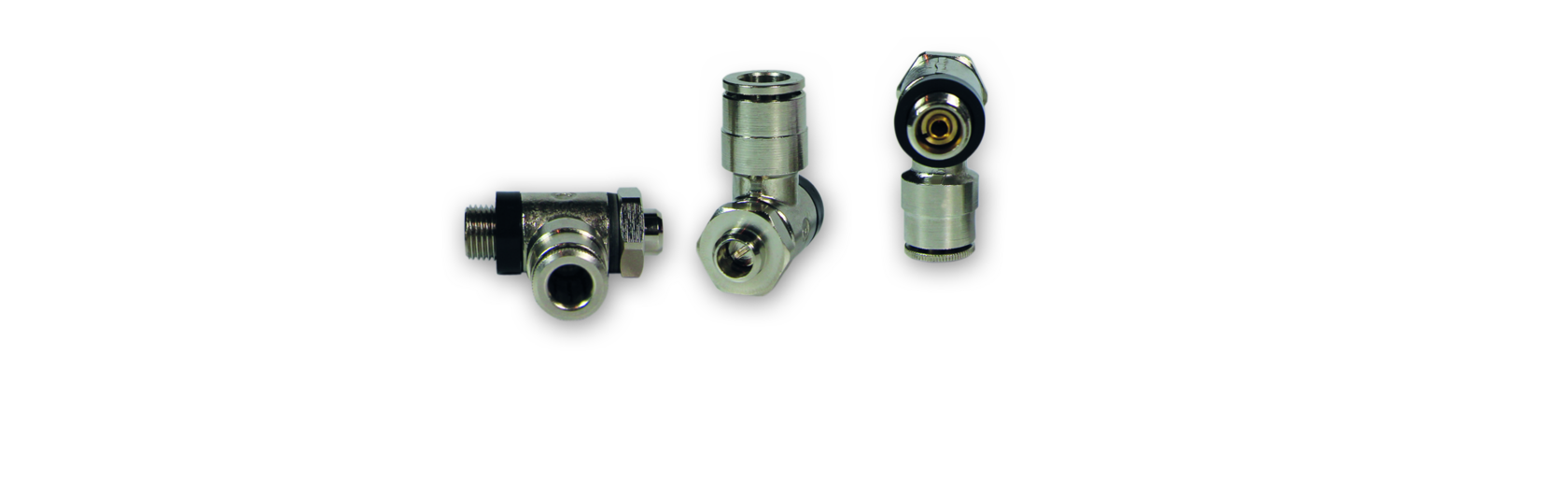

| Hohlschraubenventil mit RingsteckanschlussBanjo bolt valve with push-in connection | DVH-PI | M5 – G¼" | Push-In-Variante für werkzeuglosen Schnellanschluss — ideal zur Montagezeitreduktion in der Serienfertigung. Schlauch-AD 4 – 10 mm.Push-in variant for tool-free quick connection — ideal for reducing assembly time in serial production. Hose OD 4 – 10 mm. |

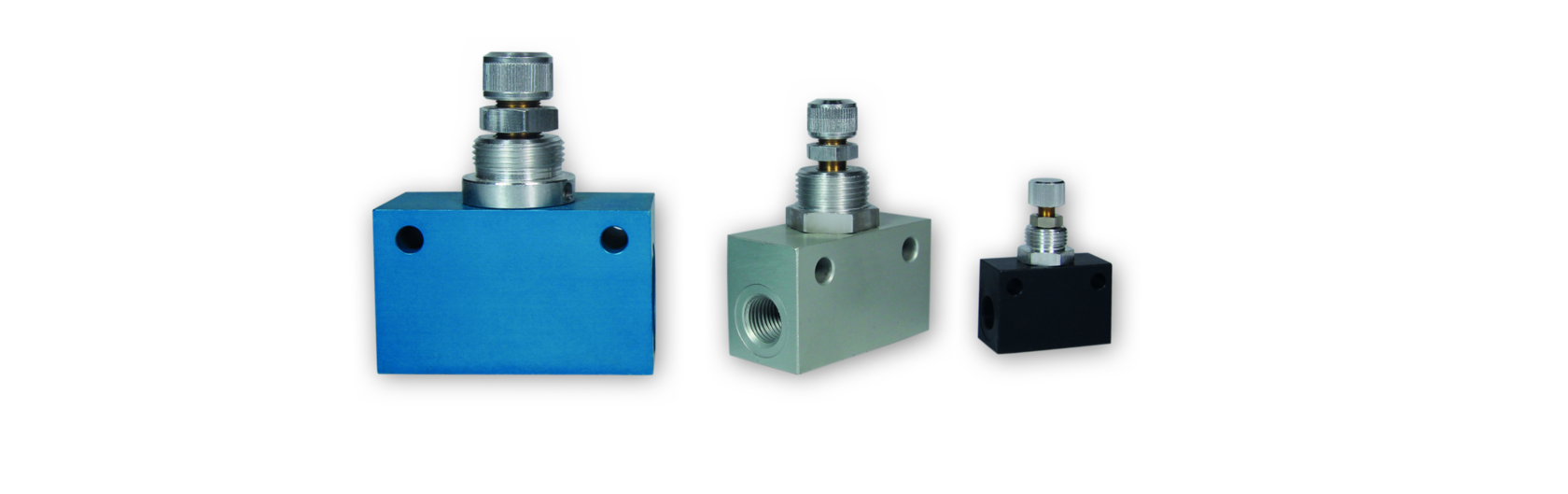

| BlockventilBlock valve | DV, DRV | G⅛" – G½" | Universell einsetzbare Blockventile mit Innengewinde beidseitig — für Integration in komplexe pneumatische Schaltungen. DV = reines Drosselventil, DRV = mit zusätzlicher Rückschlagfunktion.Universal block valves with female thread on both sides — for integration into complex pneumatic circuits. DV = pure throttle valve, DRV = with additional check function. |

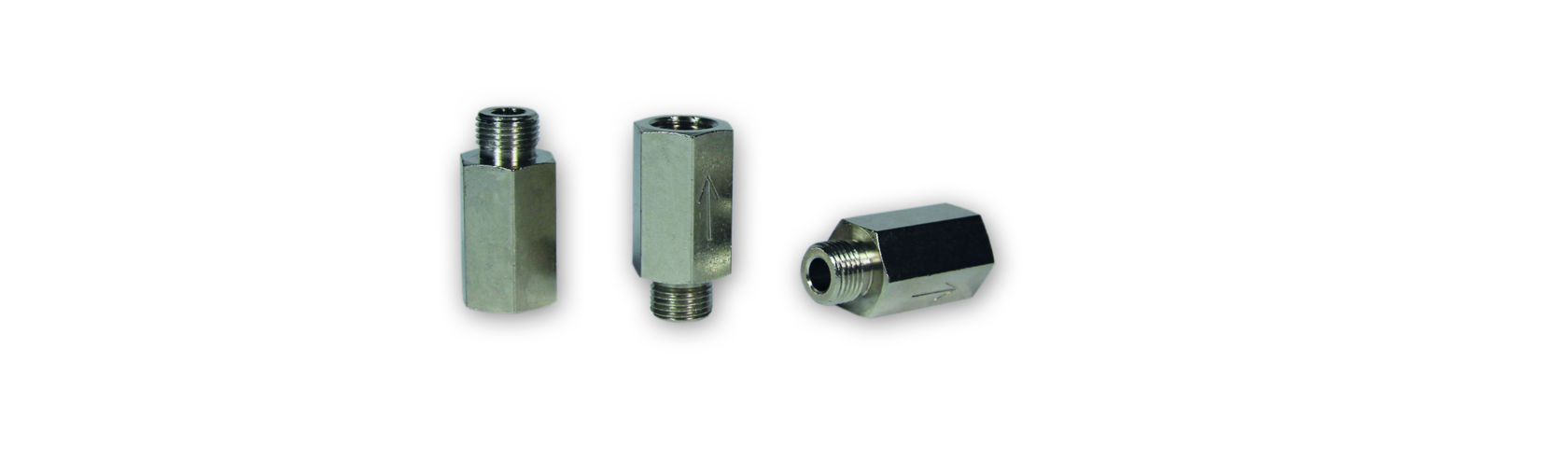

| RückschlagventilCheck valve | RV | G⅛" – G½" | Reine Rückschlagfunktion — verhindert Rückströmung in pneumatischen und hydraulischen Leitungen. Öffnungsdruck 0,1 – 0,3 bar, Dichtheit nach ISO 6358.Pure check function — prevents backflow in pneumatic and hydraulic lines. Opening pressure 0.1 – 0.3 bar, leak tightness per ISO 6358. |

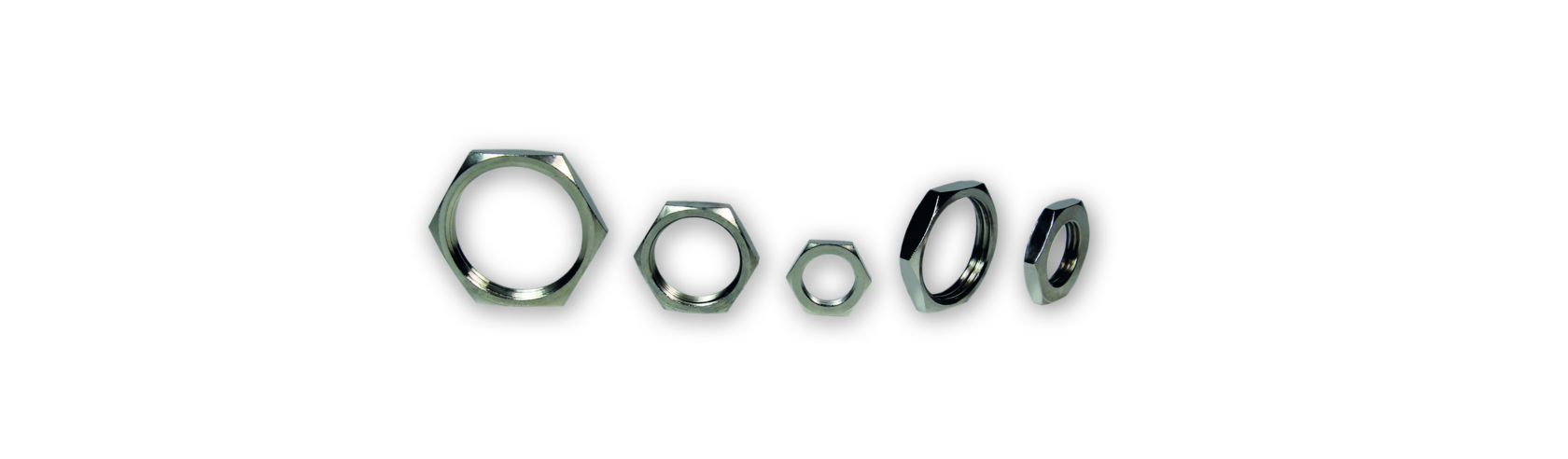

| BefestigungsmutterMounting nut | — | G⅛" – G½" | Befestigungsmuttern als Zubehör für Schottverschraubungen — Wand- und Gehäusedurchgänge sicher fixieren.Mounting nuts as accessory for bulkhead fittings — secure fixation for wall and housing pass-throughs. |
Alle Ventile aus Messing vernickelt, mit NBR-/Vulkollan-Dichtungen, PVC-Dichtring und POM-Distanzring. Druckbereich pmin 0,2 bar – pmax 10 bar, Nenndruck 6 bar. All valves made of nickel-plated brass, with NBR/Vulkollan seals, PVC sealing ring and POM spacer. Pressure range pmin 0.2 bar – pmax 10 bar, nominal pressure 6 bar.
Sonderausführungen, abweichende Werkstoffe, Gewinde und Größen auf Anfrage. Custom designs, alternative materials, threads and sizes available on request.
